Temperature measurement device temperature sensor
Description
KTS130 is suitable for temperature measurement and control fields such as freezer, granary, storage tank, telecommunication room, power room, cable trunking and so on. With digital temperature, glass-sealed thermistor with heat resistance, cold resistance and very good stability.

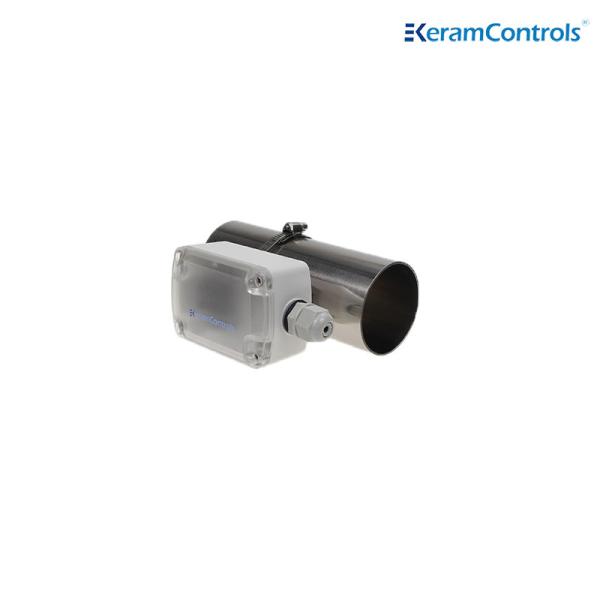

KTS130 series bundled sensor is a low-cost temperature sensor specially designed for pipeline surface temperature measurement. It is suitable for temperature measurement in various applications.
Feature
- Range from -40 to +200°C
- Resistance output
- Standard accuracy, see table
- Protection class: IP65 / NEMA 4
Application
KTS120 temperature transmitter used for temperature measurement in heating, ventilation and air conditioning systems enabling weather-dependent temperature regulation.
Technical Data
| Model | KTS130 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) |
| NTC 10k B3950 Accuracy B:3989K±1% |
| NTC 10k B3435 Accuracy B:3435K±1% |
| NTC 1k Accuracy B:3500K±1% |
| NTC 2k Accuracy B:3977K±0.3% |
| Response Time | <1min / < 30s, measuring the liquid in the pipeline |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -30...+ 70℃ (body) / -30...+ 200℃(probe) |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
Notes On Disposal
Product Certification
Dimensions(mm)
Ordering Guide
KTS130- Element-Hous Clamp
| Model | Element | House Clamp |
| KTS130 | PT100 Class A | (1) | S-250MM | (V) |
| PT1000 Class A | (2) | S-400MM | (W) |
| NTC 10k B395 | (3) | S-600MM | (X) |
| NTC 10k B3435 | (4) | S-800MM | (Y) |
| NTC 1k | (5) | S-10000MM | (Z) |
| NTC 2k | (6) | | |
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
